· Intro

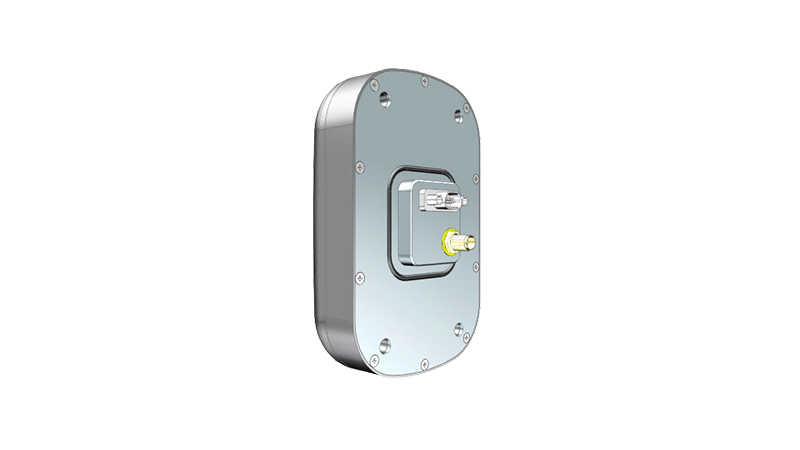

The TX16 GNSS navigation anti-jamming antenna provides protection for critical satellite navigation frequencies. The TX16 GNSS navigation anti-interference antenna has a built-in antenna array to ensure the normal operation of the GNSS receiver in the presence of multiple sources of interference. The TX16 GNSS navigation anti-jamming antenna can work with civil and military GNSS receivers for land, sea, air platforms (including unmanned aerial systems) and fixed installations.
· Working Principle
The TX16 GNSS navigation anti-jamming antenna supposes interference by creating a zero trap in the interference flow, providing anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. The product outputs protected standard radio frequency (RF) signals that are compatible with standard GNSS receivers. The TX16 features a high-performing antenna array that reduces size while maintaining excellent performance. Applicable to various application scenarios with limited space.
The TX16 GNSS navigation anti-jamming antenna provides protection for critical satellite navigation frequencies. The TX16 GNSS navigation anti-interference antenna has a built-in antenna array to ensure the normal operation of the GNSS receiver in the presence of multiple sources of interference. The TX16 GNSS navigation anti-jamming antenna can work with civil and military GNSS receivers for land, sea, air platforms (including unmanned aerial systems) and fixed installations.
· Working Principle
The TX16 GNSS navigation anti-jamming antenna supposes interference by creating a zero trap in the interference flow, providing anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. The product outputs protected standard radio frequency (RF) signals that are compatible with standard GNSS receivers. The TX16 features a high-performing antenna array that reduces size while maintaining excellent performance. Applicable to various application scenarios with limited space.
|
• Peculiarity |
• Application Scenario |
|
• Mature shelf products |
• Fixed-wing aircraft |
|
• Structural design for easy installation |
• Rotorcraft |
|
• Compatible with all types of external GPS receivers and vehicle navigation systems |
• Unmanned aircraft systems platform |
|
• Requires only simple training to become proficient in the use of the method |
• Armored vehicle platform |
|
• Lightweight design |
• Ship platform |
|
• Ultra-compact size |
|
|
• Excellent interference suppression performance |
|
· Performance Index:
|
Size (mm) |
110×70×29 |
|
Weight (g) |
260 |
|
Power Consumption (w) |
<9 |
|
Number of Antennas |
4 |
|
Anti-jamming Quantity |
3 |
|
Protected Frequency Points |
GPS L1,GAL E1,BDS B1 or GLO L1 |
|
Anti-interference Performance |
≥85dB·J/S |
|
Data Interface |
Serial |
|
Coupler |
1x SMA Female , 1xJ30J 9-pin Socket |
|
Operating Voltage |
6-24V·DC |
|
Working Environment |
-40 °C ~ +70 °C |
