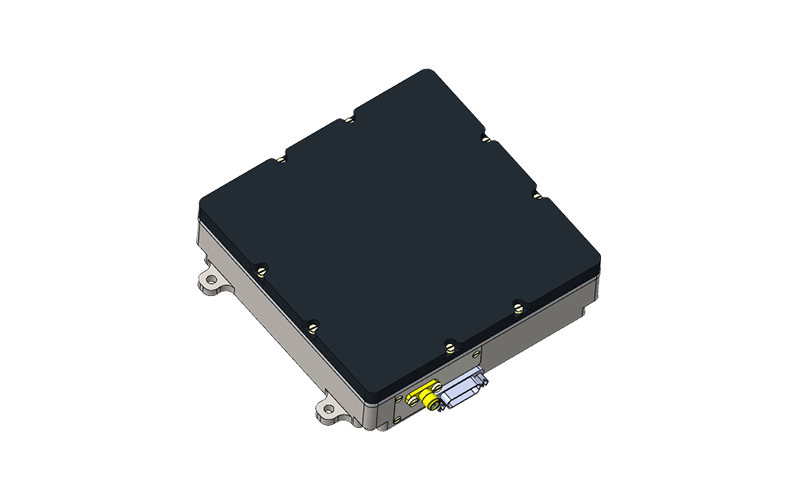

The TX02GNSS navigation anti-jamming antenna provides protection for critical satellite navigation frequency points. The TX02 GNSS navigation anti-interference antenna has a built-in array of 4 antennas, which can ensure the normal operation of the GNSS receiver in the presence of multiple interference sources. The TX02 GNSS navigation anti-jamming antenna can work with civil and military GNSS receivers for land, sea, air platforms (including unmanned aerial systems) and fixed installations.
• Working Principle
The TX02 GNSS navigation anti-jamming antenna supposes interference by creating a zero trap in the interference flow, providing anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. The product outputs protected standard radio frequency (RF) signals that are compatible with standard GNSS receivers.
|
• Peculiarity |
• Application Scenario |
|
• Mature shelf products |
• Fixed-wing aircraft |
|
• Structural design for easy installation |
• Rotorcraft |
|
• Compatible with all types of external GPS receivers and vehicle navigation systems |
• Unmanned aircraft systems platform |
|
• Requires only simple training to become proficient in the use of the method |
• Armored vehicle platform |
|
• Lightweight design |
• Ship platform |
|
• Ultra-compact size |
|
|
• Excellent interference suppression performance |
|
• Performance Index:
| Size (mm) | 120 * 120 * 32 |
|
Weight (g) |
450 |
|
Power consumption (w) |
< 15 |
|
Number of antennas |
4 |
|
Anti-jamming quantity |
3 |
|
Protected frequency points |
GPS L1,GAL E1,BDS B1,GLO L1(Assorting) |
|
Anti-interference performance |
>90dB J/S |
|
Data interface |
Serial |
|
Coupler |
1x SMA Female , 1xJ30J 21-pin Socket
|
|
Operating voltage |
6-15V·DC |
|
Working environment |
-40 °C ~ +70 °C |
