· Intro
Beidou II /GPS jammer is an independent, remote control jammer. The interference source can output a variety of standard interference signals at BD2-B1/B2/B3, GPS-L1, GLONASS-L1 frequency points. The jammer is lightweight, compact, flexible and suitable for wireless performance testing and electronic countermeasures applications of various anti-jamming receivers.

· Product features:
· The device can output a variety of standard interference signals of BD2-B1/B2/B3, GPS-L1, GLONASS-L1 frequency points;
· The device can be controlled remotely through serial port and wireless.
· Support power adjustment;
· The maximum output power is not less than 30dBm;
· Optional large capacity lithium battery, can continue to work in the field;
· The output power can be expanded and enhanced (external power amplifier);

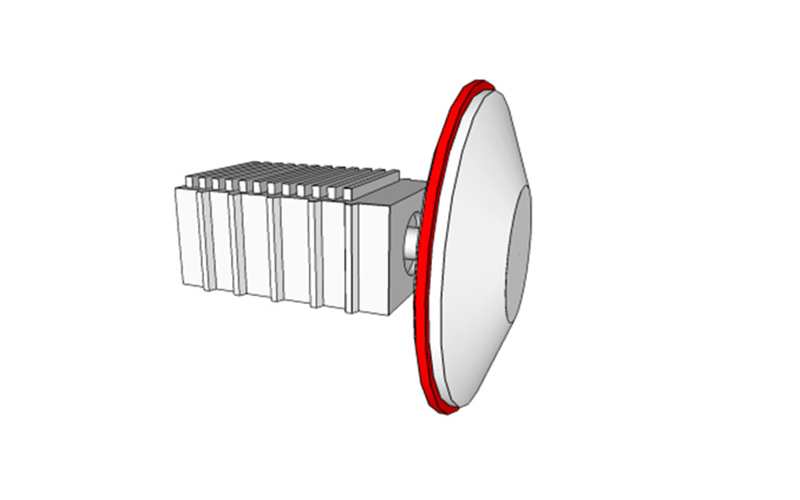

· With a host/antenna split structure, a variety of antennas can be flexibly used.

· Application field:
Anti-interference equipment batch field experiment, comparison, acceptance.

· Performance index:

Operating Frequency Point	BDS B1/B2/B3/S , GPS L1/L2/L5 , GLO L1/L2 , GAL E1/E5 , QZSS L1/L2 , SBAS L1
Point frequency interference	1-3GHz
Sweep interference	The starting and ending frequency of frequency sweep can be set (within a 20M bandwidth), the sweep period (1s~10s), and the step can be set (1Hz~10mHz)
White noise interference	Signal center frequency point, bandwidth can be set (2M, 4M, 10M, 20M, 50M)
Pulse interference	Pulse width：1us-10s Period：1us-10s Pulse width≤Period
Maximum output power	30±1dBm，External power amplifier extension
Power adjustment range	-30~30dBm，Step：1dB
Operating voltage	12~28VDC/220V AC
Dimensions	Host:145mm98mm63.5mm: Antenna:¢194ⅹ68mm
