· Intro

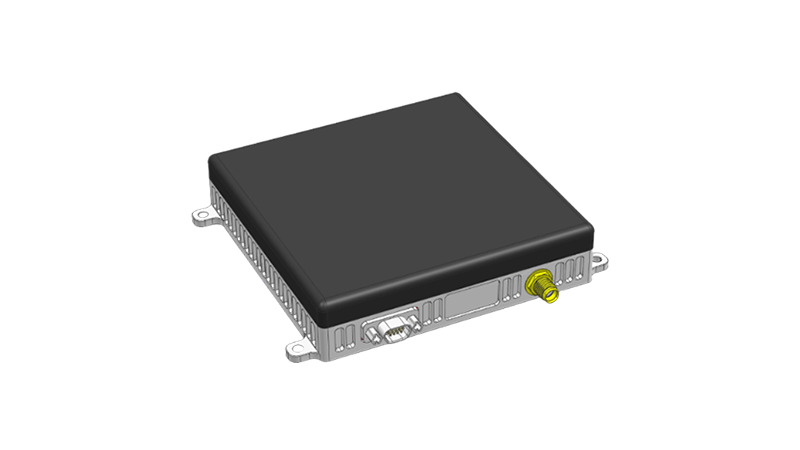

The TX14 GNSS Navigation Anti-Interference Antenna can provide protection for critical satellite navigation frequencies. The TX14 GNSS Navigation Anti-Interference Antenna is equipped with 4 array antennas, which can ensure that the GNSS receiver operates normally even in the presence of multiple interference sources. The TX14 GNSS Navigation Anti-Interference Antenna can work with civilian and military GNSS receivers for use on land, at sea, in the air (including drone systems) and fixed installations.
· Working Principle
The TX14 GNSS Navigation Anti-jamming Antenna generates a null in the interference direction to suppress interference, providing anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. The product outputs a protected standard radio frequency (RF) signal that is compatible with standard GNSS receivers.
The TX14 GNSS Navigation Anti-Interference Antenna can provide protection for critical satellite navigation frequencies. The TX14 GNSS Navigation Anti-Interference Antenna is equipped with 4 array antennas, which can ensure that the GNSS receiver operates normally even in the presence of multiple interference sources. The TX14 GNSS Navigation Anti-Interference Antenna can work with civilian and military GNSS receivers for use on land, at sea, in the air (including drone systems) and fixed installations.
· Working Principle
The TX14 GNSS Navigation Anti-jamming Antenna generates a null in the interference direction to suppress interference, providing anti-jamming protection for GNSS receivers even in dynamic multi-jammer scenarios. The product outputs a protected standard radio frequency (RF) signal that is compatible with standard GNSS receivers.
|
• Peculiarity |
• Application Scenario |
|
• Mature shelf products |
• Fixed-wing aircraft |
|
• Structural design for easy installation |
• Rotorcraft |
|
• Compatible with all types of external GPS receivers and vehicle navigation systems |
• Unmanned aircraft systems platform |
|
• Requires only simple training to become proficient in the use of the method |
• Armored vehicle platform |
|
• Lightweight design |
• Ship platform |
|
• Ultra-compact size |
|
|
• Excellent interference suppression performance |
|
· Performance Index:
|
Size (mm) |
100×100×26 |
|
Weight (g) |
225 |
|
Power Consumption (w) |
<9 |
|
Number of Antennas |
4 |
|
Anti-jamming Quantity |
3 |
|
Protected Frequency Points |
GPS L1,GAL E1,BDS B1 or GLO L1 |
|
Anti-interference Performance |
> 85dB·J/S |
|
Data Interface |
Serial |
|
Coupler |
1x SMA Female , 1xJ30J 9-pin Socket |
|
Operating Voltage |
6-24V·DC |
|
Working Environment |
-40 °C ~ +70 °C |
