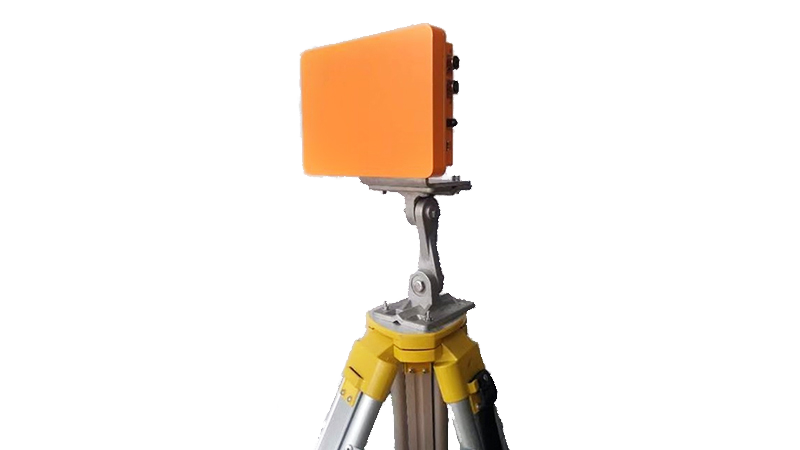

Microwave radar cable force meter is a new measuring product, which mainly uses radio electromagnetic wave to measure the fundamental frequency of real-time vibration of bridge cable in radar view.
• Compared with the traditional measurement means, the DFLD-K02 microdeformation detection radar/microwave radar cable force meter has the following characteristics in the fundamental frequency monitoring of the cable:
• long distance, effective detection distance of 300 meters;
• non-contact, can obtain the vibration of the middle of the cable, the test sensitivity is higher;
• can detect multiple cables at the same time, improve the detection efficiency;
• easy to set up, no need to install the target on the cable under test;
• all weather, all day, not affected by weather such as rain, snow and fog;
• can realize the unattended automatic monitoring of the cable, to meet the needs of bridge cable health monitoring.
• Main performance index
Center frequency
K-band, 24.0125GHz (Max bandwidth 1G)
Maximum detection distance
1-300m
Deformation detection accuracy
better than 0.1mm
Vibration frequency detection range
0.1 Hz—50Hz
Vibration frequency detection accuracy
±0.3%
Data update rate
1~300Hz
Maximum detection distance
≥300M
Minimum target resolution
0.3m
System power consumption
8W
Power supply
12V DC power supply
Working temperature
-40℃~60℃
