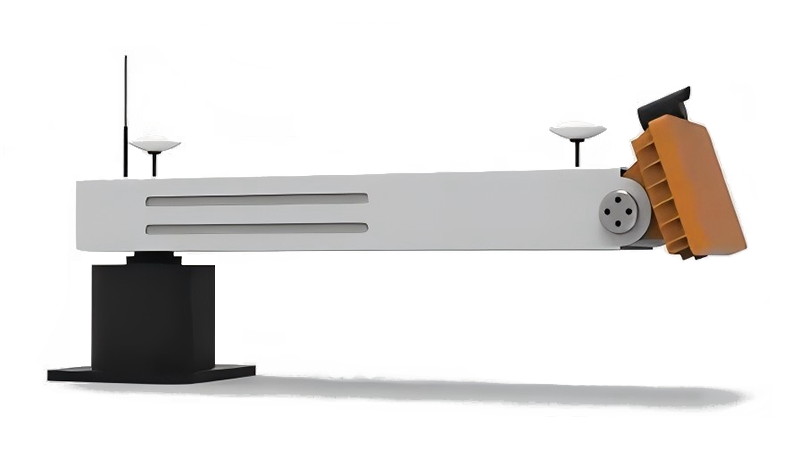

TWO-DIMENSIONAL MICRO-DEFORMATION MONITORING RADAR
· Intro
The two-dimensional micro-deformation monitoring radar adopts the imaging principle of synthetic aperture radar (SAR) or real aperture radar (RAR) and the displacement extraction principle of interference radar (InSAR or DInSAR) to realize the surface displacement monitoring of various geological bodies or structures. According to the displacement quantity, velocity and other parameters, the early warning level is judged, and the early warning is issued to realize real-time automatic displacement monitoring and early warning
· Product characteristics
Two-dimensional micro-deformation monitoring radar system is applied to stability and safety monitoring, which can realize real-time automatic monitoring of all-day, all-weather, large range (comprehensive coverage within 5 kilometers) and high precision (sub-millimeter displacement monitoring accuracy), so as to realize the analysis and early warning of slope stability. The specific characteristics are as follows:
· All day, all weather: 24 hours, all weather conditions
· Wide range: can implement surface monitoring, provide full field of micro deformation field of view;
· High precision: sub-millimeter displacement monitoring accuracy;
· Non-contact: belongs to non-contact measurement, remote sensing monitoring, no need to deploy any cooperation targets;
· Long distance: the maximum monitoring distance can reach 5 km;
· Automatic monitoring: unattended, with 24 hours continuous monitoring;
· Automatic data collection, results generation, deformation analysis, early warning and forecasting;
· The hardware and software system has good openness, and supports compatibility with existing systems, data sharing and data exchange with superior systems.
· Application field
In geological disasters, emergency rescue, open-pit mines, water conservancy DAMS, railway slopes, highway slopes and large Bridges and other fields.
